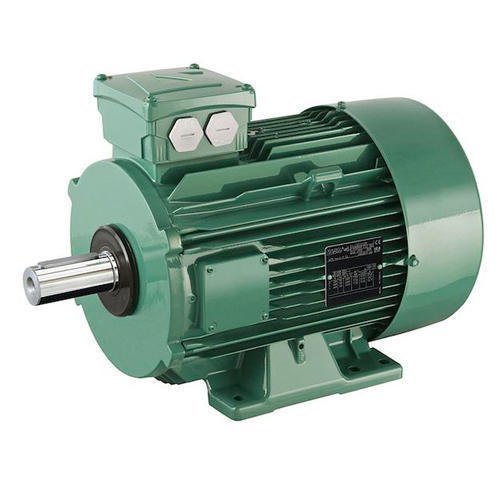

Standard Motors

HINDUSTAN IE2 IE3 IE4 induction motors suitable for 415V±10%, 50Hz±5%, combined ±10%, 3 phase supply, foot mounted (B3
construction), ambient temperature 50°C, TEFC, Class ‘F’ insulation, IP55 protection, continuous rated (S1 duty) with bare shaft & key
as per IS:12615 / IEC:60034-1

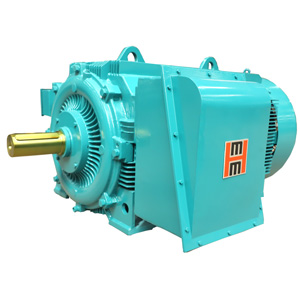

Power Horse Motors

Series IE2 IE3 induction motors suitable for 415V±10%, 50Hz±5%, combined ±10%, 3 phase supply, foot
mounted (B3 construction), ambient temperature 50°C, TEFC, Class ‘H’ insulation, IP55 protection, Epoxy base paint, PTC thermisters,
continuous rated (S1 duty) with bare shaft & key as per IS:12615 / IEC:60034-1.



Duplex Cooling Motors

type IE3 induction motors suitable for 415V±10%, 50Hz±5%, combined ±10%, 3 phase supply, foot
mounted (B3 construction), ambient temperature 40°C, TEFC, Class ‘H’ insulation with class ‘F’ temp. rise, IP55 protection, continuous
rated (S1 duty) with bare shaft & key inclusive of PTC thermisters & anti condensation heaters as per IS:12615 / IEC:60034-1.

Two Speed Motors

induction motors suitable for 415V±10%, 50Hz±5%, combined ±10%, 3 phase supply, foot mounted
(B3 construction), ambient temperature 50°C, TEFC, Class ‘F’ insulation, IP55 protection, continuous rated (S1 duty) with bare
shaft & key as per IS/IEC:60034-1.

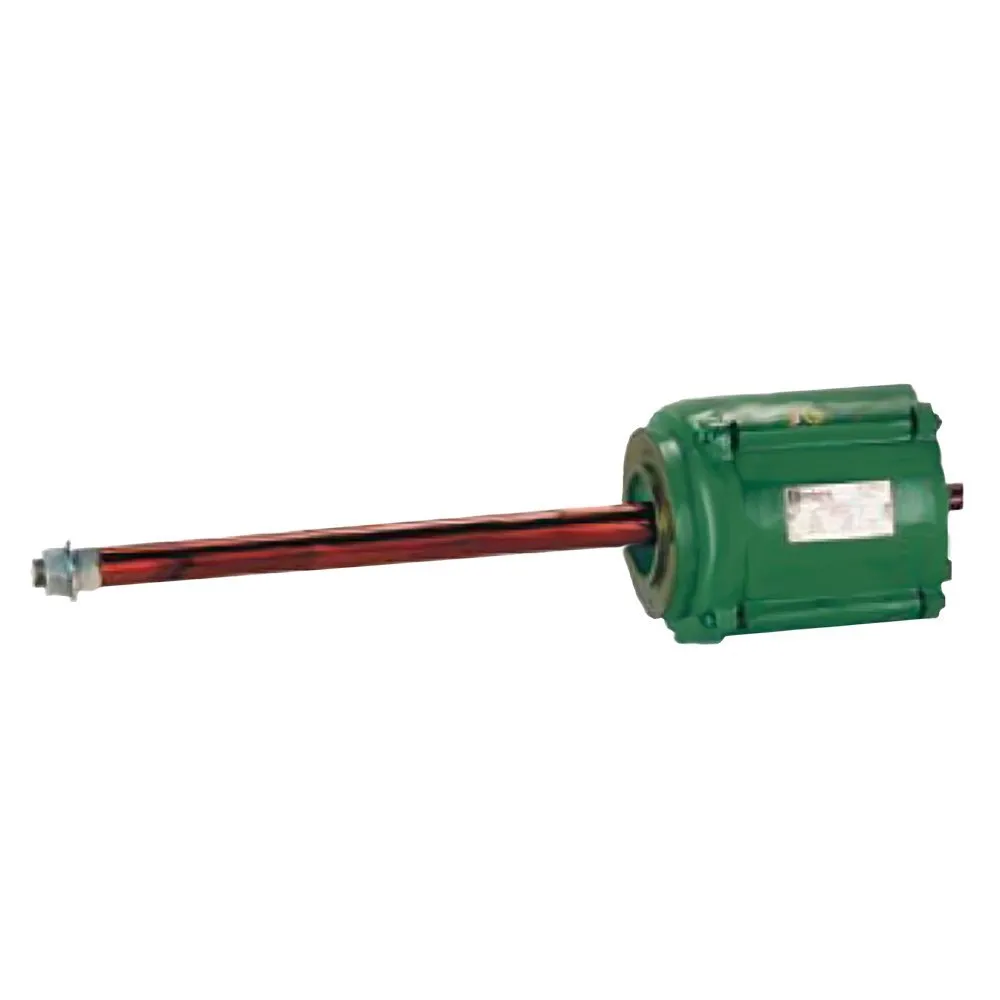

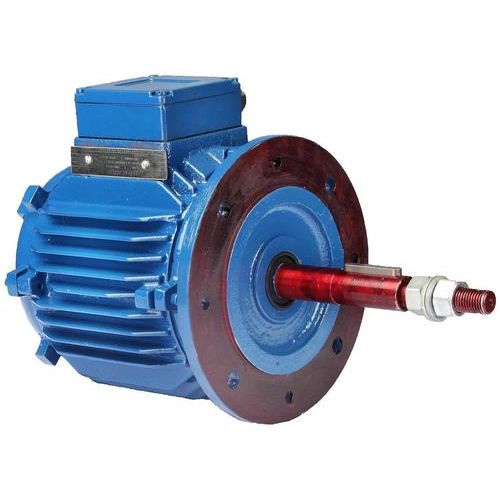

Cooling Tower Motors

induction motors suitable for 415V±10%, 50Hz±5%, combined ±10%, 3 phase supply, flange mounted
(B5 construction), ambient temperature 50°C, TE construction, Class ‘F’ insulation, IP55 protection, continuous rated (S1 duty) as per
IS/IEC:60034-1

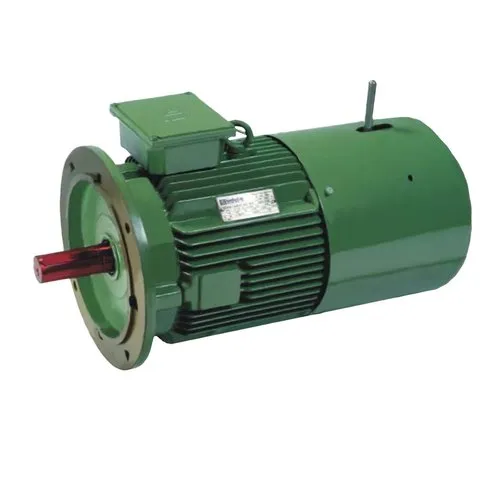

Crane & Hoist duty

Squirrel Cage Induction Motors suitable for 415V±10%, 50Hz±5%, combined ±10%, 3 phase
supply, foot mounted (B3 construction), ambient temp. 50°C, Class ‘F’ insulation, IP55 protection, TEFC construction, Duty type S4-
40%, 150 st/hr with bare shaft & key as per IEC:60034-1.

Torque Motors

suitable for 415V±10%, 50Hz±5%, combined ±10%, 3 phase supply, foot mounted (B3 construction),
ambient temperature 50°C, Class ‘F’ insulation, IP55 protection, with bare shaft & key as per IS/IEC:60034-1

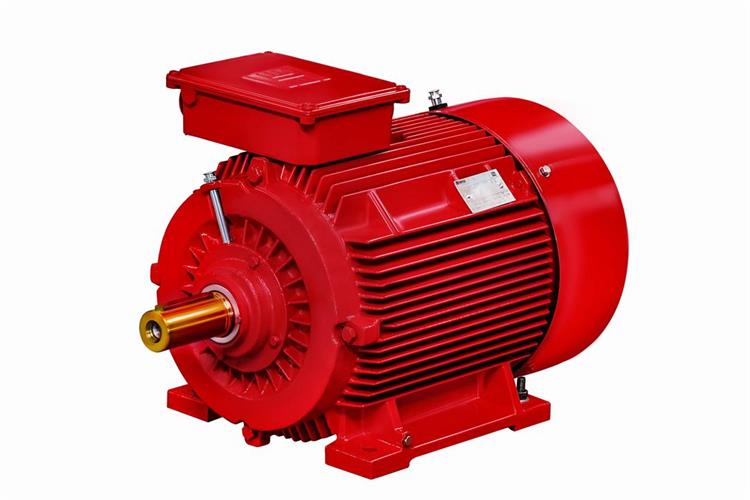

Fire Fighting Application Motors

with IE2 efficiency class, Totally Enclosed Fan Cooled (TEFC) construction, Squirrel cage, 3 phase, B3 mounting, IP 55 protection, suitable for operation on 415±10%V, 50Hz±5% AC supply, Ambient
temperature 40ºC, Class F insulation with temperature rise limited to Class F, Altitude less than 1000 m above m.s.l., Service
Factor 1.0, Performance & Efficiency values conforming to IS:12615, with bare shaft & key

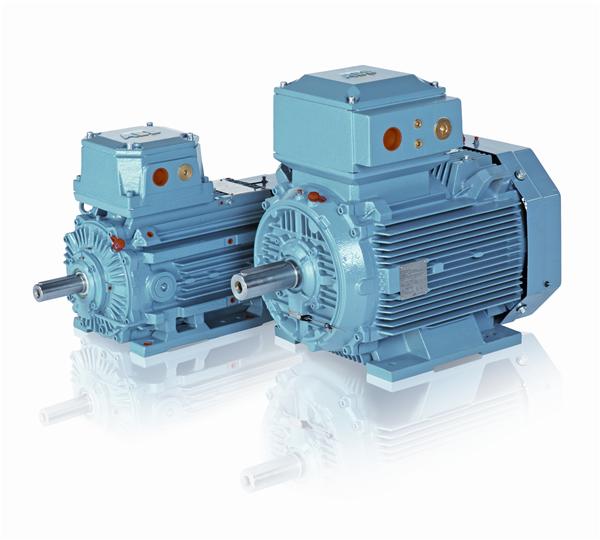

Flameproof Ex’d’

induction motors suitable for 415V±10%, 50Hz±5%, combined ±10%, 3 phase supply, foot
mounted (B3 construction), ambient temperature 50°C, TEFC, Class ‘F’ insulation, IP55 protection, continuous rated (S1 duty) with
bare shaft & key as per IEC:60034-1 & suitable for gas group IIB as per IS/IEC:60079-1.
